Featuring a slight angle between surfaces, wedge windows prevent back-reflections and enable beam steering. They are ideal for isolating laser cavities and precision optical alignment.
Wedge-shaped plates can be used either to individually deflect a laser beam to a specific angle or by combining two wedge prisms for beam deflection applications.
| Material | K9, BK7, FS, UVFS, CaF₂, ZnSe |
| Diameter | 5-300 mm |
| Diameter tolerance | ±0.05 mm |
| Center thickness tolerance | ±0.05 mm |
| Angle error | <3 arc min |
| Surface accuracy | λ/4@ 633nm or λ/10@633nm |
| Surface quality (S/D) | 60/40 or 20/10 |
| Effective caliber | 90% |
| Edge reversal | <0.2*45° |

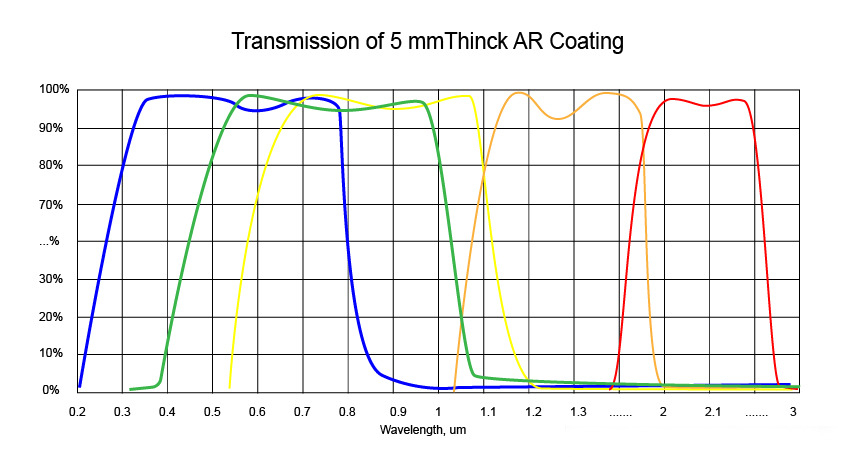

| Coating | Customized upon request |
