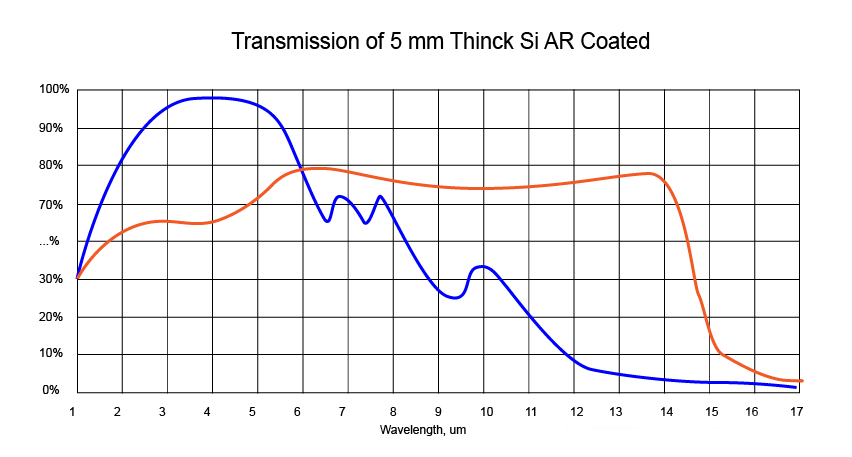

Lightweight and cost-effective, silicon windows are optimized for the 1.2-7µm NIR-MWIR range. They are ideal for weight-sensitive IR sensors and thermal imaging applications.
Silicon windows are precision optical components designed to transmit light with minimal scattering or diffraction. Hengpu manufactures silicon windows in diameters ranging from 5 mm to 200 mm, with custom optical solutions available upon request. These windows are precision-engineered to introduce virtually no wavefront distortion, making them a highly cost-effective choice for a wide variety of optical applications.
| Material | K9, BK7, FS, UVFS, CaF₂, ZnSe |
| Diameter | 5-300 mm |
| Diameter tolerance | ±0.05 mm |
| Center thickness tolerance | ±0.05 mm |
| Angle error | <3 arc min |
| Surface accuracy | λ/4@ 633nm or λ/10@633nm |
| Surface quality (S/D) | 60/40 or 20/10 |
| Effective caliber | 90% |
| Edge reversal | <0.2*45° |
| Coating | Customized upon request |
