Features a curved surface to focus or diverge light. Available in concave and convex shapes, they are ideal for beam collimation and sensor imaging.
Name: Spherical mirror
Place of Origin: Shaanxi, China
Surface quality: 20/10--80/60
Description: Spherical mirror
Spherical Mirrors: A mirror whose reflective surface is part of a spherical surface is called a spherical mirror. Spherical mirrors are classified into two types: convex mirrors and concave mirrors. A spherical mirror that uses the inner surface of the sphere as the reflective surface is called a concave mirror, while one that uses the outer surface is called a convex mirror. Reflective coatings are typically applied to meet specific reflectivity requirements. Common reflective coatings include UV-enhanced aluminum, protected aluminum, silver, gold, and dielectric reflective coatings.
| Material | K9, BK7, FS, UVFS, CaF₂, ZnSe |
| Diameter | 5-300 mm |
| Diameter tolerance | ±0.05 mm |
| Center thickness tolerance | ±0.05 mm |
| Angle error | <3 arc min |
| Surface accuracy | λ/4@ 633nm or λ/10@633nm |
| Surface quality (S/D) | 60/40 or 20/10 |
| Effective caliber | 90% |
| Edge reversal | <0.2*45° |
| Coating | Customized upon request |

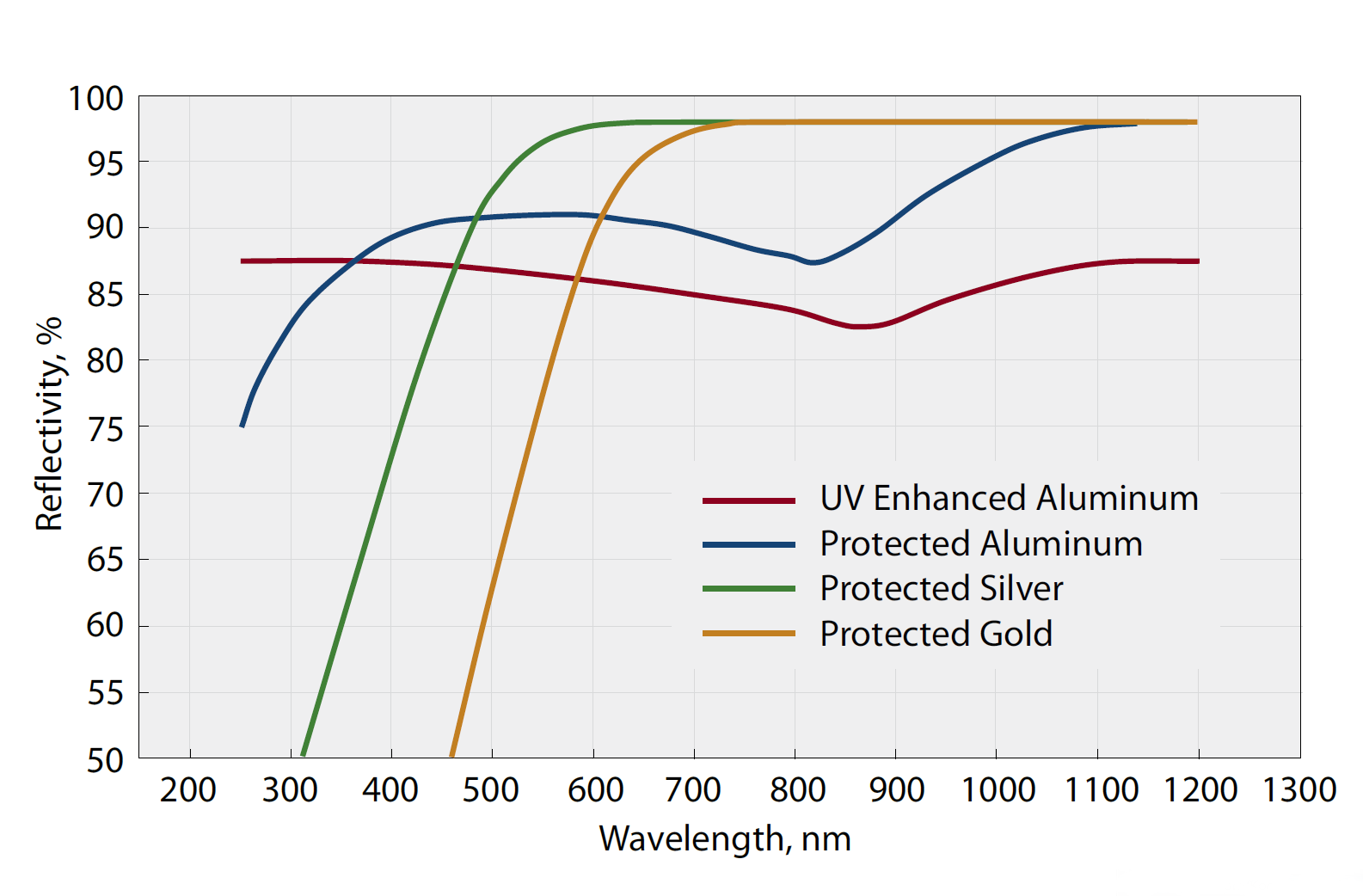

Hengpu also offers high-reflectivity coatings, including Aluminum, Gold, Silver, and UV-Enhanced Aluminum.
Protected Gold Coatings: Enhances reflectivity across the visible and infrared (IR) spectrums.
Protected Silver Coatings: Provides higher reflectivity than aluminum coatings in the visible and near-infrared (NIR) spectrums.
Protected Aluminum Coatings: Boosts reflectivity within the visible light range.
UV-Enhanced Aluminum Coatings: Delivers enhanced reflectivity in both the ultraviolet (UV) and visible spectrums.
