Deflects light by a fixed small angle. Used in Risley pairs, they enable continuous 360° beam steering for laser scanning and optical path adjustment.
Diameter: 5 mm- 300 mm ±0.1 mm
Surface Accuracy: λ/ 8 @
Center Thickness Tolerance: ±0.05mm
Lens Alignment Error: ≤3min

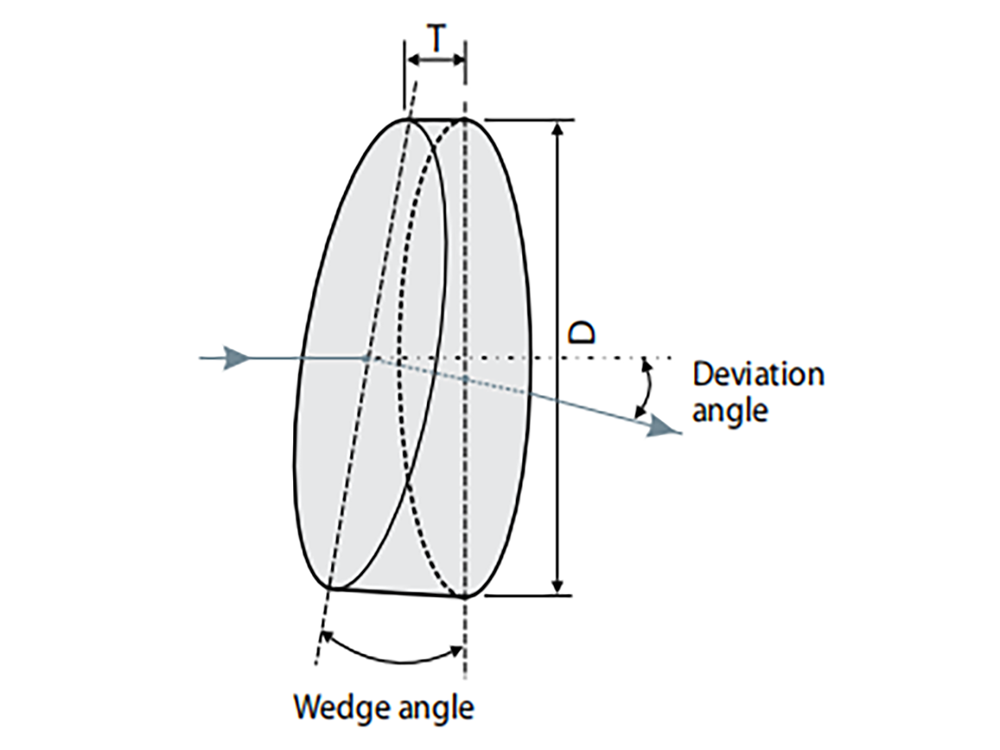

A wedge prism is an optical element with sloped planar surfaces; typically, these two faces are inclined toward each other at a very small angle. It deviates light toward its thicker portion. By selecting an appropriate wedge, a precise beam deviation can be easily generated without affecting other beam parameters. If two wedges are used together with their sloped surfaces adjacent, a continuous variation in beam deviation can be achieved by counter-rotating the prisms.
| Material | K9, BK7, FS, UVFS, CaF₂, ZnSe |
| Diameter | 5-300 mm |
| Dimensional tolerance | ±0.05 mm |
| Center Thickness Tolerance | ±0.05 mm |
| Angle Tolerance | <3 arc min |
| Surface Accuracy | λ/4@ 633nm or λ/10@633nm |
| Surface quality | 60/40 or 20/10 |
| Effective caliber | 90% |
| Chamfer/Beve | <0.2*45° |
| Coating | Customizable upon request: (AR /HR /PR) |
