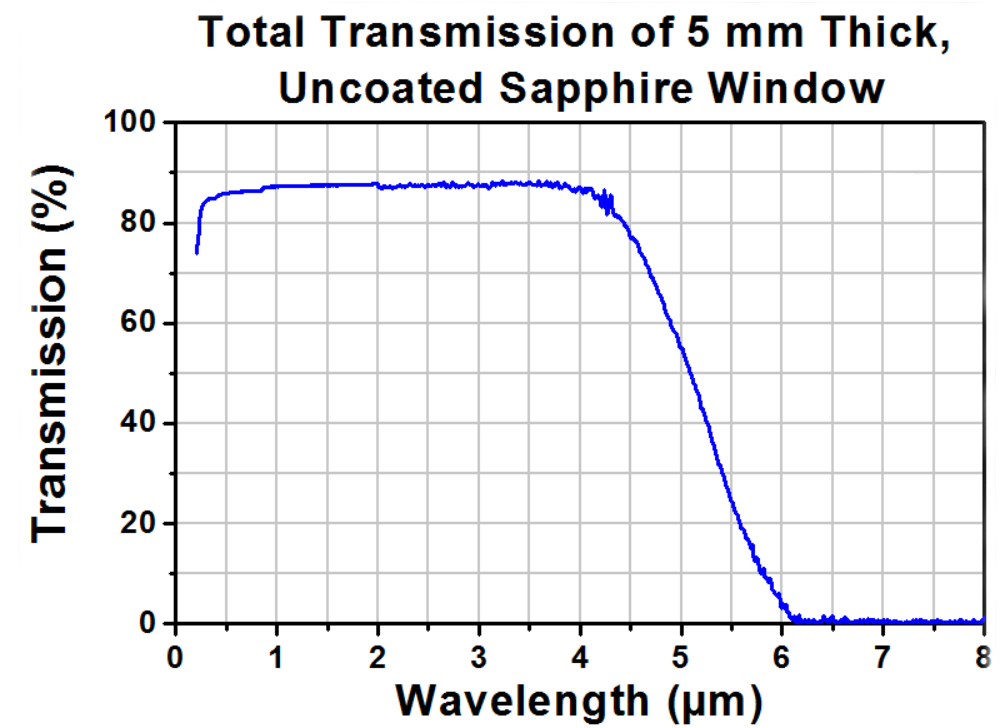

Featuring exceptional surface hardness and chemical resistance, sapphire windows offer broad transmission from UV to MWIR. They are ideal for harsh environments and high-pressure industrial applications.
Performance of sapphire window pieces: high hardness, excellent wear resistance, and heat resistance. The sapphire window is oriented along the Z-axis section, ensuring that the crystal's C-axis is parallel to the optical axis, thereby eliminating the double refraction effect of transmitted light.
| Material | sapphire |
| Diameter tolerance | ±0.05 mm |
| Angle error | <3 arc min |
| Surface Accuracy | λ/4@ 633nm or λ/10@633nm |
| Surface quality(S/D) | 60/40 or 20/10 |
| Effective caliber | 90% |
| Edge reversal | <0.2*45° |
| Coating | Customized upon request |
