Focuses collimated light without chromatic aberration. Its off-axis design provides more space around the focal point for sensors and external detectors.

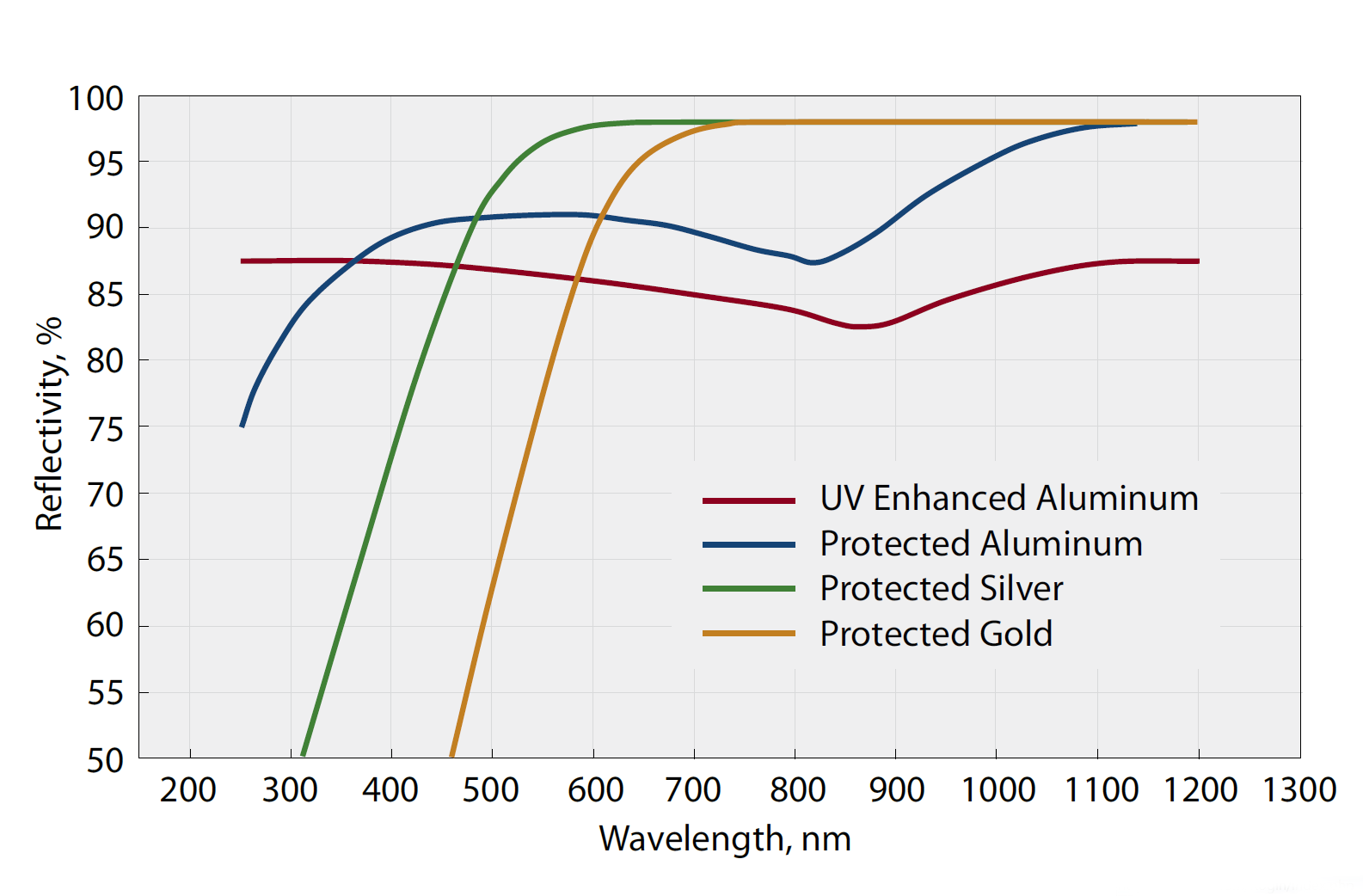

Off-Axis Parabolic (OAP) Mirrors are available with four coating options: UV-enhanced aluminum (250 - 450 nm), protected aluminum (450 nm - 20 µm), protected silver (450 nm - 20 µm), and protected or unprotected gold (800 nm - 20 µm), designed for collimating or focusing broadband light.
We also offer vacuum-compatible 90° off-axis parabolic mirrors with options for UV-enhanced aluminum, protected silver, and protected gold coatings. These vacuum-compatible OAP mirrors are diamond-turned to achieve an RMS surface roughness of <50 Å, minimizing scattering to the greatest extent
To receive more information or inquire about a custom order, please contact Tech Support: elma@hp-lens.com
| Material | K9, BK7, FS, UVFS, CaF₂, ZnSe |
| Diameter tolerance | ±0.05 mm |
| Angle error | <3 arc min |
| Surface accuracy | λ/4@ 633nm or λ/10@633nm |
| Surface quality (S/D) | 60/40 or 20/10 |
| Effective caliber | 90% |
| Edge reversal | <0.2*45° |
| Coating | Customized upon request |
