Redirects light by 90° or 180° via Total Internal Reflection. They are more durable and easier to align than standard mirrors in complex optical trains.
Processing Range: 5 mm- 300 mm ±0.1 mm
Center Thickness Tolerance ±0.05mm
Surface Accuracy λ/ 8 @
Surface Quality 60/40.40/20.20/10

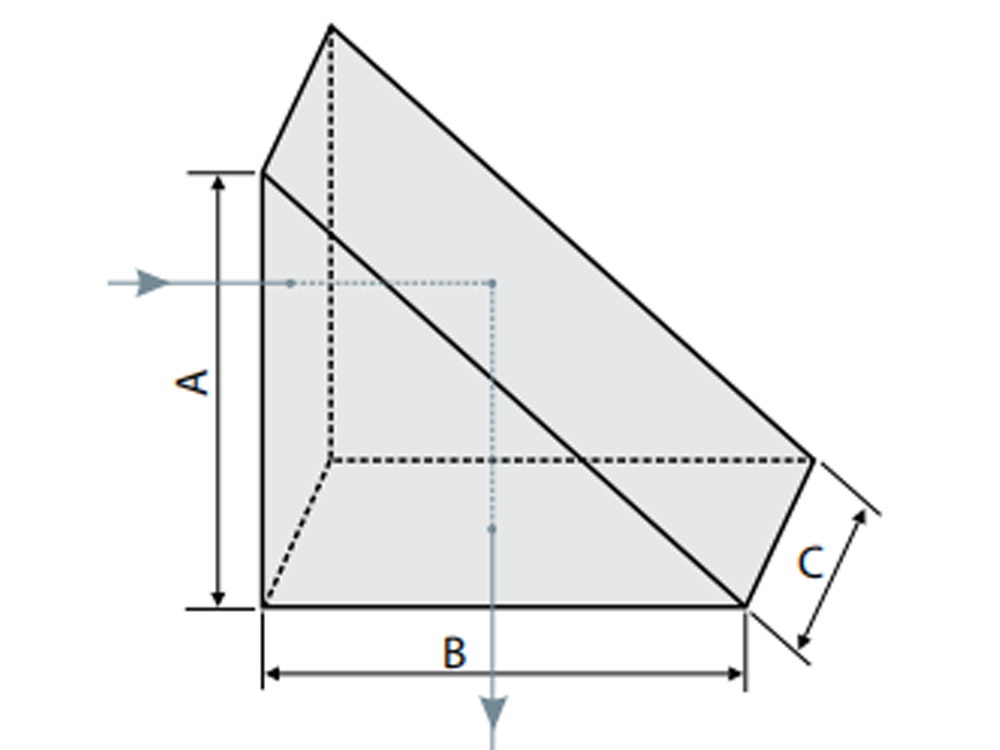

Right-angle prisms are commonly used to redirect light paths or deviate images formed by an optical system by 90°. Depending on the orientation of the prism, the resulting image can be inverted top-to-bottom with left-to-right correctness, or reversed left-to-right with top-to-bottom correctness. Right-angle prisms are also utilized for image combining, beam displacement, and other applications. Right-angle prism: Efficiently utilizing critical angle characteristics for total internal reflection of incident light is one of the fundamental functions of a right-angle prism.
| Material | K9, BK7, UVFS, CaF₂, ZnSe |
| Diameter | 5-300 mm |
| Dimensional tolerance | ±0.05 mm |
| Center Thickness Tolerance | ±0.05 mm |
| Angle Tolerance | <3 arc min |
| Surface Accuracy | λ/4@ 633nm or λ/10@633nm |
| Surface quality | 60/40 or 20/10 |
| Effective caliber | 90% |
| Chamfer/Beve | <0.2*45° |
| Coating | Customizable upon request: (AR /HR /PR) |
