Engineered for superior light convergence across medical, industrial laser, and research applications.

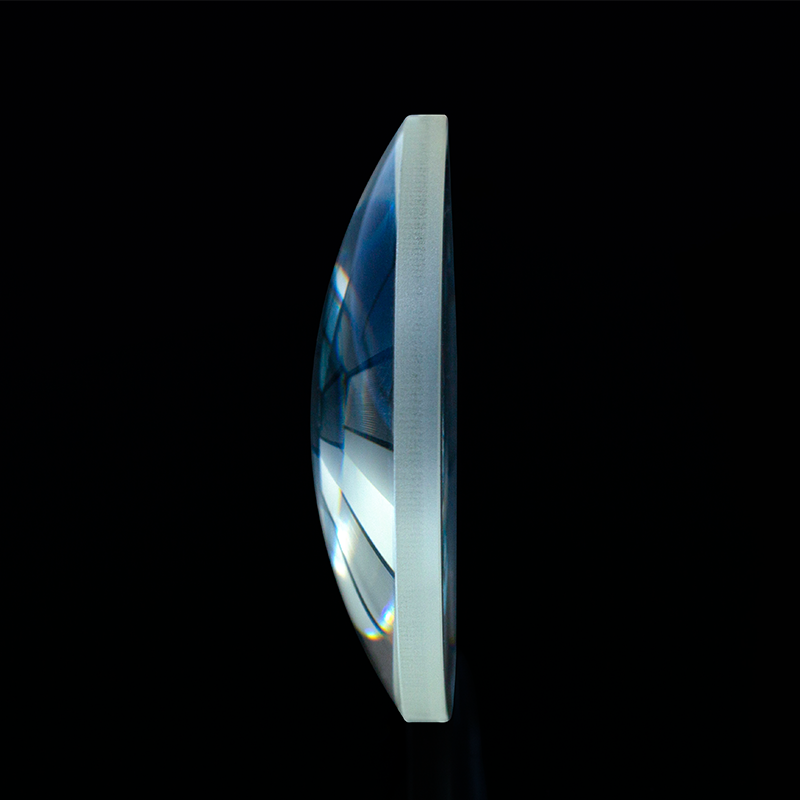

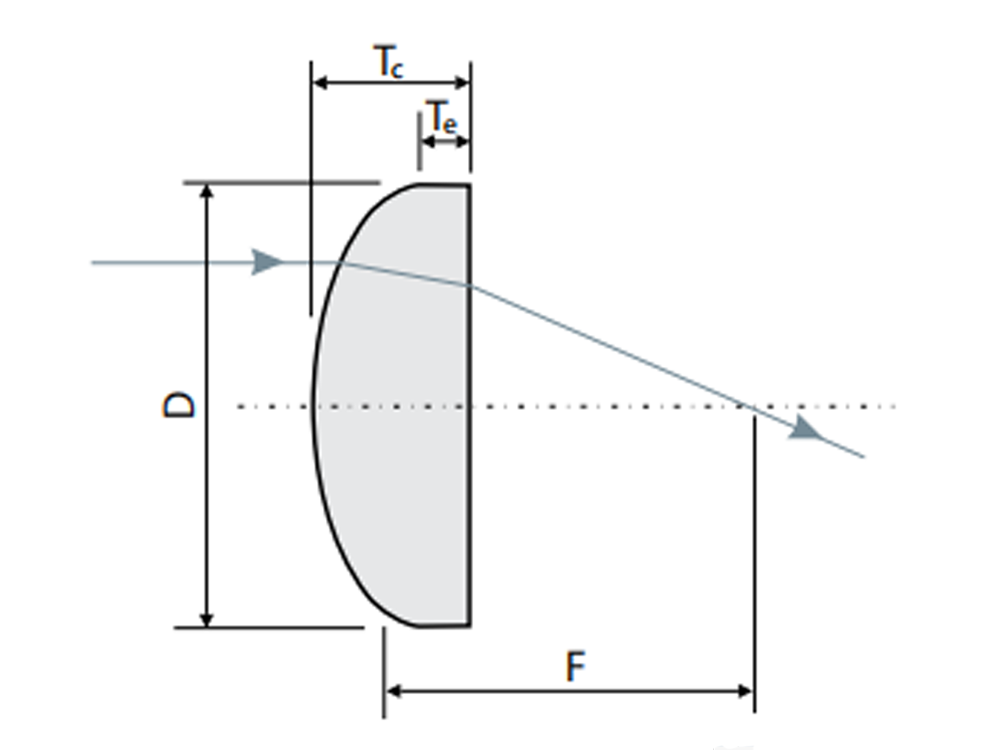

Its core characteristics stem from its "plano-convex" asymmetrical structure:
Ultra-Precision: Surface quality up to 40/20 Scratch/Dig, Flatness λ/8.
Diverse Materials: N-BK7, Fused Silica, CaF₂, ZnSe available.
Custom Coating: High-LIDT AR/BBAR coatings.
| Material | K9, BK7, FS, UVFS, CaF2, ZnSe |
| Diameter | 3mm-300mm±0.05mm |
| Center Thickness Tolerance | ±0.05mm |
| Lens Alignment Error | ≤3min |
| Surface Accuracy | λ/4@ 633nm or λ/10@ 633nm |
| Surface Quality | 20/10, 40-20 or 60-40 |
| Effective Caliber | 90% |
Example with BK7 material: These N-BK7 biconvex lenses are available uncoated or with one of five antireflection coatings (-A, -AB, -B, -C, or -D), which reduce the amount of light reflected from each surface of the lens (see the Selection Guide table below for coating option). Since approximately 4% of the incident light is reflected at each surface of an uncoated substrate, the application of an AR coating improves transmission, which is important in low-light applications, and prevents the undesirable effects (e.g., ghost images) associated with multiple reflections. Having optics that are AR coated on both surfaces is particularly desirable for applications utilizing multiple optical elements. Please see the Graphs tab for additional coating information.
| N-BK7 Biconvex Lens Selection Guide | ||
| Coating name | wavelength band |  |
| Uncoated | Uncoated | |
| A Coating | 350nm-700nm | |
| AB Coating | 400nm-1100nm | |
| B Coating | 650nm-1050nm | |
| C Coating | 1050-1700nm | |
| D Coating | 1650nm-3000nm | |
